We rebuild and repair about 40 carburetors a year for tractors, cars and trucks. Our rebuild process is very thorough and similar to how we treat distributors:
1. Disassemble.
2. Soak for 24 hours in alcohol, NEVER in that caustic cleaner!
3. Dry for an hour in a 150°F convection oven.
4. Blast with baking soda, NEVER with sand!
5. Inspect/measure all parts.
6. Replace or repair parts as needed.
7. Reassemble.
8. Adjust.
If necessary, because of our well supplied machine shop and our experience, we can make parts for them that you can't buy anywhere else.
Example: We had a TSX-13 Marvel Schebler carb from a 1939 John Deere "L". The choke shaft was broken in pieces. Obviously, the carb was unusable without it. Only about 4,000 of this model carb were made, so it was critical to repair it. Between our CAD and toolroom capabilities, we designed and built the tools we needed, and made a new shaft.
1. Disassemble.
2. Soak for 24 hours in alcohol, NEVER in that caustic cleaner!
3. Dry for an hour in a 150°F convection oven.
4. Blast with baking soda, NEVER with sand!
5. Inspect/measure all parts.
6. Replace or repair parts as needed.
7. Reassemble.
8. Adjust.
If necessary, because of our well supplied machine shop and our experience, we can make parts for them that you can't buy anywhere else.
Example: We had a TSX-13 Marvel Schebler carb from a 1939 John Deere "L". The choke shaft was broken in pieces. Obviously, the carb was unusable without it. Only about 4,000 of this model carb were made, so it was critical to repair it. Between our CAD and toolroom capabilities, we designed and built the tools we needed, and made a new shaft.

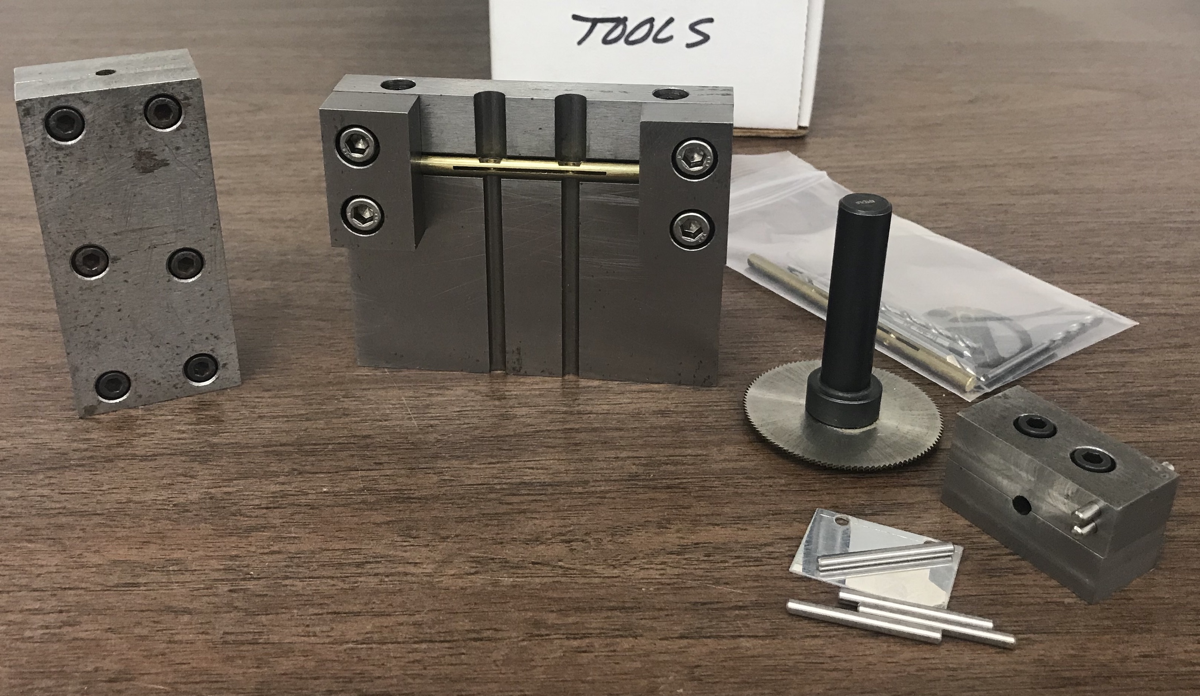

Left to right:
Choke shaft peening fixture

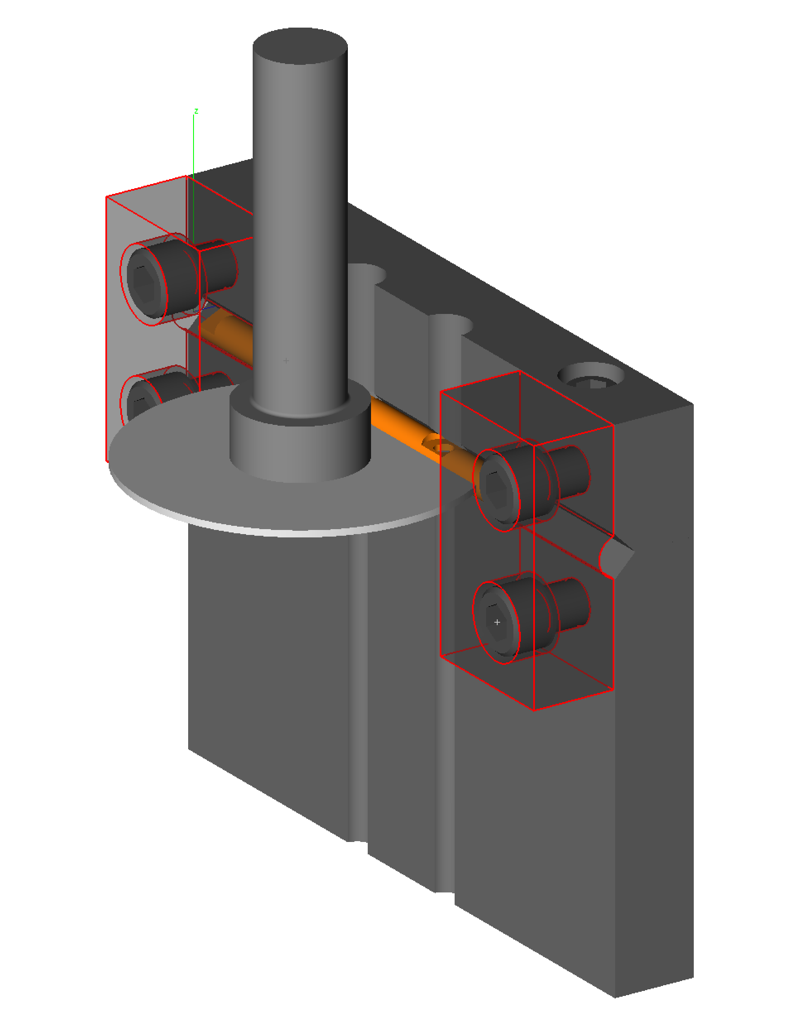

Shaft cutting jig
Slitting saw
Indexing jig
Choke shaft peening fixture
Shaft cutting jig
Slitting saw
Indexing jig

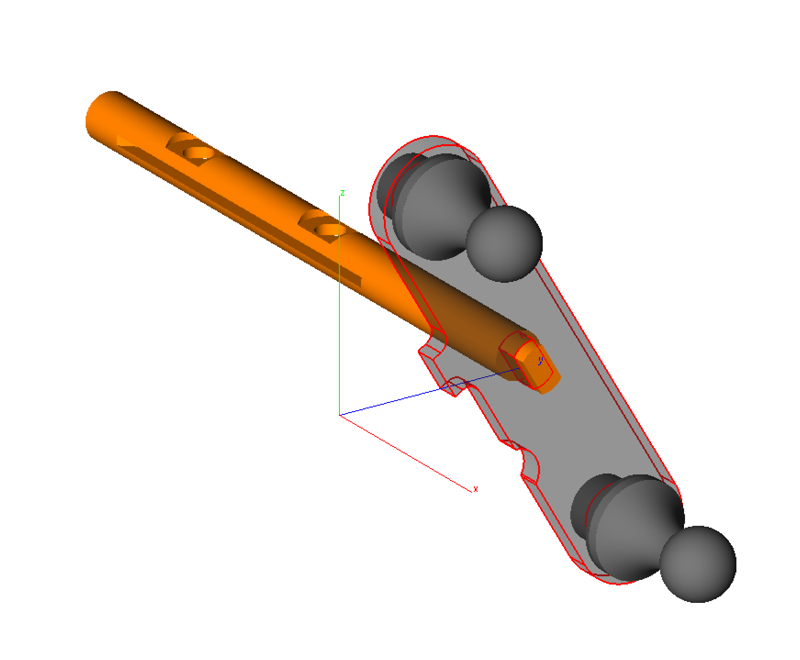

Choke shaft CAD model
We've used the same tooling to manufacture special replacement "double bell crank" versions used on, for example, the wartime Ford 2N. These tractors had a choke control on the dash as well as on the right dogleg to facilitate starting up while hand cranking the engine.

1942 Ford "Wartime" 2N Choke Shaft
If you've got a carb that needs restored to it's original function, please consider using our services!
